How to Assess the Weldability of Metal Materials in Cable Butt Welding Machines？

The weldability of metal materials is a critical factor when using cable butt welding machines for joining electrical cables. This article explores the methods and considerations for evaluating the weldability of various metal materials, ensuring successful and reliable cable welds.

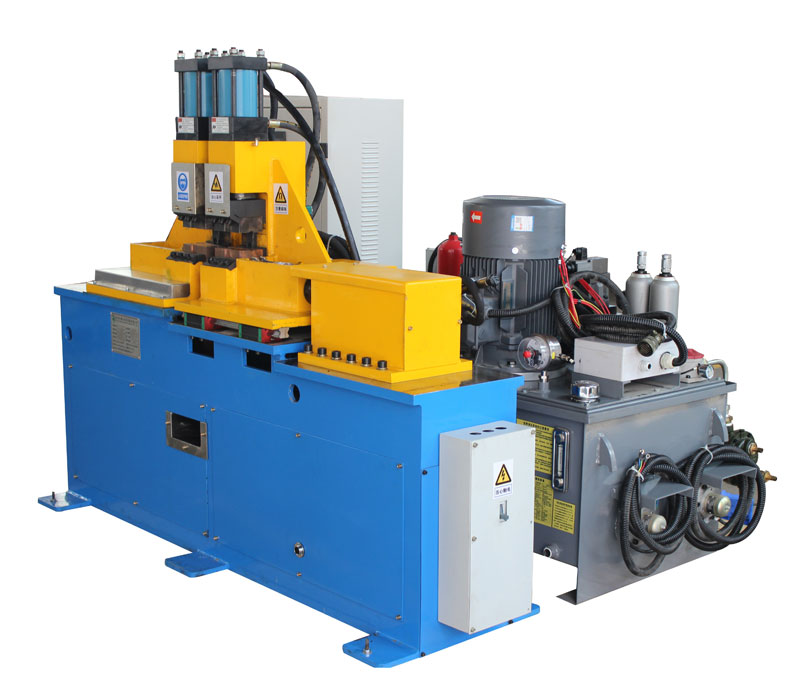

Butt welding machine

1. Material Compatibility:

  • Significance: Compatibility between the cable material and the metal being welded is essential to prevent contamination and ensure a clean weld.
  • Considerations: Determine whether the cable material is compatible with the metal to be used for the weld. Incompatibility can result in poor-quality welds and potential safety hazards.

2. Melting Point:

  • Significance: The melting point of the metal material impacts the welding process.
  • Considerations: Ensure that the metal material’s melting point is within a range suitable for the welding method and equipment being used. Materials with excessively high melting points may require specialized welding techniques.

3. Conductivity:

  • Significance: Electrical conductivity affects the efficiency of energy transfer during welding.
  • Considerations: Choose metals with sufficient electrical conductivity to enable efficient energy transfer. Copper is a common choice due to its excellent conductivity.

4. Chemical Composition:

  • Significance: The chemical composition of the metal can affect its weldability.
  • Considerations: Be aware of any elements or impurities in the metal that may impact the welding process. Select materials with appropriate chemical compositions for the specific cable welding application.

5. Heat-Affected Zone (HAZ):

  • Significance: The size and properties of the HAZ can influence the final weld quality.
  • Considerations: Understand how the chosen metal material affects the size and properties of the HAZ. Some materials may result in larger or more brittle HAZ, which can impact the cable’s performance.

6. Joint Preparation:

  • Significance: Proper joint preparation is crucial for achieving successful welds.
  • Considerations: Ensure that the metal materials are prepared correctly, with clean, well-aligned, and tightly fitted joints. Inadequate joint preparation can lead to defects and weak welds.

7. Welding Process Compatibility:

  • Significance: Different welding processes may be better suited for certain metal materials.
  • Considerations: Select a welding process that is compatible with the chosen metal material. For example, certain metals may require specialized equipment or shielding gases.

8. Material Thickness:

  • Significance: The thickness of the metal material can impact welding parameters.
  • Considerations: Adjust welding parameters, such as current and pressure, to accommodate variations in material thickness. Ensure that the chosen welding machine can handle the specific thickness of the metal.

9. Pre-Weld Testing:

  • Significance: Conducting test welds or trials can help assess the weldability of metal materials.
  • Considerations: Before performing critical cable welds, conduct test welds using the chosen metal materials to evaluate weld quality and performance.

Evaluating the weldability of metal materials is essential to ensure successful cable welds using butt welding machines. Considerations include material compatibility, melting point, electrical conductivity, chemical composition, HAZ size and properties, joint preparation, welding process compatibility, material thickness, and pre-weld testing. By carefully assessing these factors, operators can select the appropriate metal materials and welding parameters, resulting in reliable and high-quality cable welds for various electrical applications.
